Mediterranean Stones on California Shores

The Haas-Lilienthal House, 2007 Franklin Street, San Francisco, from sfheritage.org

About two weeks ago we happened to be in San Francisco, and took a tour of the Haas-Lilienthal House, an upper-middle-class residence of the 1880s that escaped the worst ravages of the Great Earthquake and Fire of 18 April, 1906. (The fire was stopped at Van Ness Ave., just one block east.) It happens to be the only Victorian house in the city open to regular public tours.

The tour was pleasantly led by a docent who presented the customary information about family, architectural milieu, and various details of design and decor that represented the aspirations of the occupants. (See another visitor’s illustrated account of the tour.) It was interesting, but held no real surprises.

Until she showed us the red marble fireplace in the Second Parlor.

Plan of Haas-Lilienthal House from SF Heritage Brochure, via plintzandchintz.com

The Second Parlor was an all-purpose gathering and socializing space for family and visitors (the Front Parlor being used only on the most important of occasions; its fireplace was of Carrara marble). The plan at left shows the layout of the house. In the Second Parlor, the docent presented the fireplace as “Numidian marble” from “Alexandria”.

This sparked three thoughts:

  1. Numidia, being at the opposite end of North Africa, has no association with Egyptian Alexandria, which in any case had no nearby marble sources.
  2. Numidian marble usually means coming from one of two quarry zones: Kristel or Kleber in Algeria (Bréche Sanguine); or Chimtou in Tunisia (Marmor Numidicum).
  3. An important dark red stone does come from Egypt: “Red Porphyry” from Gebel Abu-Dukhan in northern Egypt, though it is not marble.

A mystery, then. Which of these three possible sources could have served as the origin of the stone, if indeed it originated in North Africa? And by what means did it get to San Francisco in the 1880s?

NorthAfricanMarbleQuarries

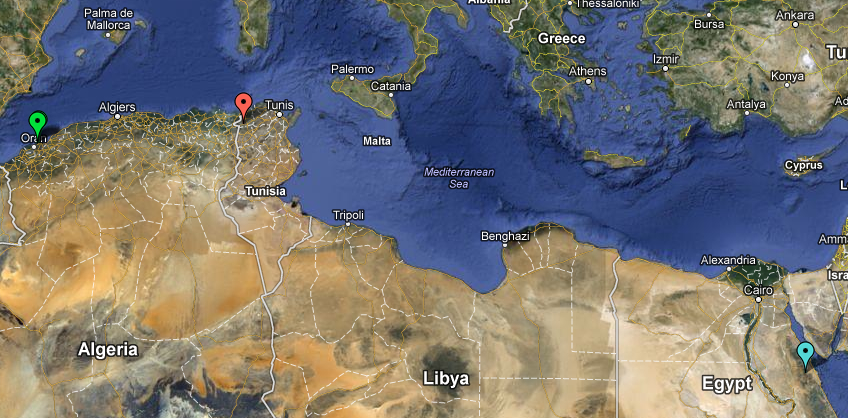

Quarries for red ‘marble’ in North Africa: Kristel/Kleber, Algeria (green); Chimtou, Tunisia (red); and Gebel Abu-Dukhan, Egypt (blue).

The map above shows the location of the potential sources. To zoom in on the quarries themselves, see this Google Map.

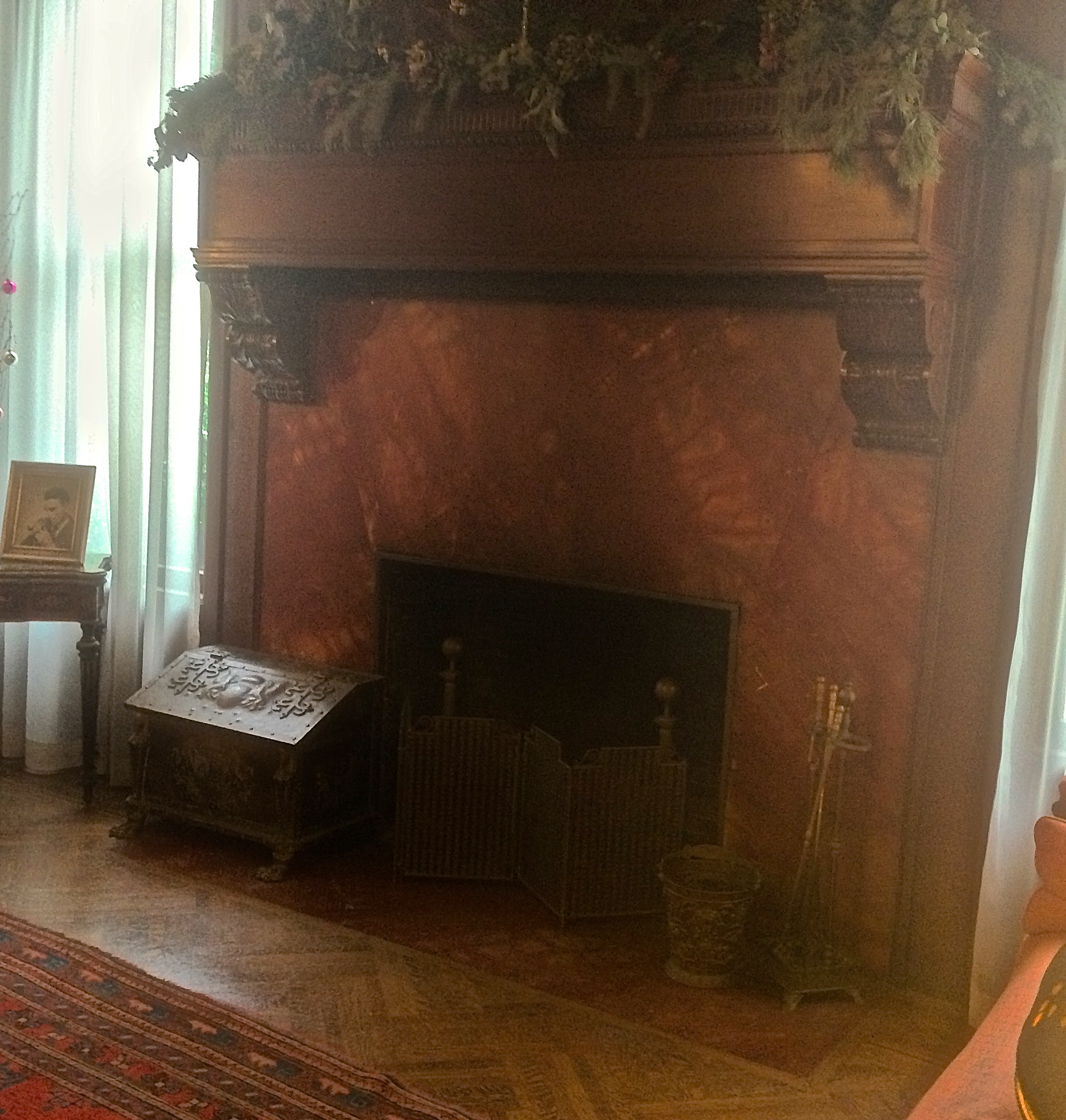

Here’s the fireplace (close-up view). It is predominantly a deep red, though it has yellow-gold and darker-red brecciation and striation.

Second Parlor fireplace in the Haas-Lilienthal House, San Francisco, from SF Heritage

While marble identification is notoriously difficult on visual inspection alone, in part because of great variation from one part of a formation to another, it seemed a fun exercise to compare the strengths and weaknesses of the three candidates (Kristel/Kleber, Chimtou, Gebel Abu-Dukhan), going from west to east.

1. Kristel/Kleber: “Bréche Sanguine. Quarries at Montagne Grise, northeast of Oran (which was the shipping point for its stone exports). These quarries were in wide operation in the late 19th and early 20th century; the British Geological Survey’s GeoScenic Databank cites their presence in many British buildings of that period. Interestingly, the entry also says this: “Breche Sanguine is frequently sent to the United States where it is used for decorative purposes. An instance may be seen in the Carnegie Library, Pittsburg, which was built in 1904, the columns, pilasters, and wainscoting in the smoking-room being composed of it.” Bréche Sanguine is a likely suspect, then.

Sample P576018. Breche Sanguine. Kleber quarries, Algeria. GeoScenic.

Sample P576028. Breche Sanguine. Kleber quarries, Algeria. GeoScenic.

2. Chimtou: “Giallo Antico” or “Marmor Numidicum. These quarries were worked from the 2nd c. BC to the 5th c. AD, and the material shipped via the adjacent Medjerda River down to the sea at Utica. They are principally known for their golden-hued mottled or striated appearance, though the spectrum of color at the quarries varies from nearly white to dark red.

ChimtouMarbleChroma

Chromatic variation in Chimtou marble: display at the local archaeological museum

This is shown in a display at the excellent local museum (rarely visited, but worth seeing), built by the Deutsches Archäologisches Institut, which pursued research there for some 30 years. (Though one of the most thorough site overviews is the French Wikipedia page.) Additional samples of marmor Numidicum can be viewed in the Corsi Collection of Decorative Stones at Oxford. Faustino Corsi did the foundational scholarship about ancient marble samples, though none of the three quarries that are best candidates for this fireplace were being worked while he was building his collection.

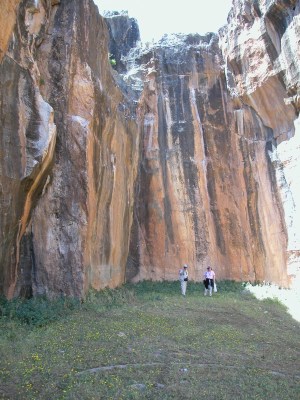

Chimtou deep quarry

Chimtou deep quarry

In the Roman period, marmor Numidicum was perhaps the most prized marble of all, particularly during the Late Republic, when the use of this precious stone for thresholds in the house of Marcus Lepidus, consul in 78 BC, caused a scandal, according to the Elder Pliny (36.49):

M. Lepidus Q. Catuli in consulatu conlega primus omnium limina ex Numidico marmore in domo posuit magna reprensione. is fuit consul anno urbis DCLXXVI. hoc primum invecti Numidici marmoris vestigium invenio, non in columnis tamen crustisve, ut supra Carystii, sed in massa ac vilissimo liminum usu.

M. Lepidus, a colleague of Quintus Catulus in the consulship, first of anyone put thresholds of Numidian marble in his house, to great opprobrium. He was consul in the 676th year (from the foundation) of the city. I find this to be the first instance of Numidian marble–but not in columns or revetment, as (mentioned) above with that of Carystos– but in block-form, and for the so very ‘cheap’ application of thresholds.

Concerning Lepidus’ faux pas, did he not know that putting such precious marble in a position to be tread upon was gauche? Or did he know, and as a politician looking to build his leadership with the populares faction in Rome, was he looking to undercut the knowledge and authority of the optimates by subverting one of the ways by which they claimed power: control, and knowledge of, exotica?

Chimtou19cItalianChurchDet

Chimtou quarries, view SW, with late 19th-c. Italian quarry-workers church magnified

Imperial/colonial control of rare commodities in North Africa was reasserted in the French invasion of Algeria in 1830 and Tunisia in 1881 (as well as the interventions of Great Britain that led to occupying Egypt in 1882). European governance led to commercial concessions, and by the end of the century giallo antico was again being exported worldwide. An Italian company worked the mountain, and the ruins of a church for its workers is still present at the site. However, such production probably came too late for this marble to have been available during the fashioning of the fireplace in question (the Haas-Lilienthal House was built in 1886). What about the red porphyry from Egypt?

3. Gebel Abu-Dukhan (Mons Porphyrites): “Red Porphyry”. The remote location of a set of six quarries on this mountain, worked extensively in antiquity, was first discovered (on the part of the Romans, anyway) on 23 July, AD 18 by a man named Caius Cominius Leugas. We know this from a dedicatory inscription he set up, in Greek, to the gods Pan-Min and Serapis on the mountain, found at the ‘Bradford’ quarry worker’s village site in 1995 (below):

GaiusCominiusLeugasInscr

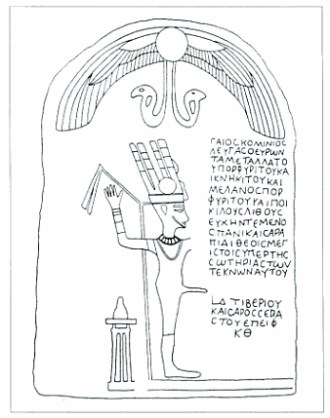

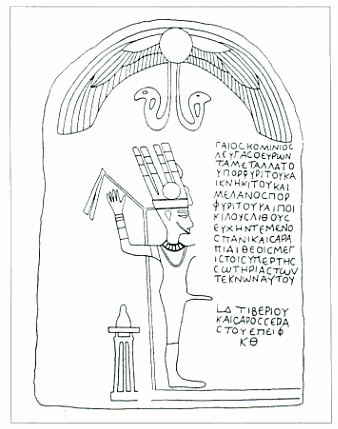

The original drawing and publication of the Gaius Cominius Leugas inscription from Mons Porphyrites, reproduced here by permission from W. Van Rengen, who published it in “A new Paneion at Mons Porphyrites,” Chronique d’Égypte 70 (1995), 240-5. Later reproductions and discussion can also be found in J.C. Fant, “Augustus and the City of Marble,” Asmosia IV (1995), Fig. 1, p. 279, and in I. Shaw, Exploring Ancient Egypt (Oxford 2003) 260.

“Caius Cominius Leugas, who discovered the quarries of the porphyry stone and knekites and black porphyry and also (found) multi-coloured stones, dedicated a sanctuary to Pan and Serapis, very great gods, for the well-being of his children. The 4th year of Tiberius Caesar Augustus Epeiph the 29th.” (after W. Van Rengen, “A new Paneion at Mons Porphyrites,” Chronique d’Égypte 70 [1995] 242-3).

Porphyry was extracted here into the early 5th c. AD, serving imperial use exclusively, such as for the famous tetrarchs statue once in Constantinople and now (as spolium) adorning St. Mark’s in Venice, or the sarcophagus of Constantina in Rome.

Serapis Temple at Mons Porphyrites, from mikeshepherdimages.com

The site was rediscovered in 1822 by James Burton, and received its first substantial publication ten years later by John Wilkinson (ref. Steve Sidebotham’s book). Four of the ancient quarry complexes produce a red-purple tinted stone. In the Italian literature this stone is often known as “porfido rosso antico,” drawing upon (once again) Pliny the Elder, who in Historia Naturalis 36.11 briefly says: “rubet porphyrites in eadem Aegypto,” or “also in Egypt, Porphyry has a red color.” The locations and geology of the stone sources are documented in Ancient Egyptian Hardstone Quarries, which provides the photographic sample below (although the term ‘rubet porphyrites‘ is a misnomer, since ‘rubet‘ is a verb, not an adjective; in fact, it means “to blush”).

Red porphyry from Gebel Abu-Dokhan, from Ancient Egyptian Hardstone Quarries

One might blush from exertion traveling the road that allowed for transport of the blocks down from the mountain and westward to the Nile. One can trace the 1.7 km. ramp from the quarry to the wadi; a 1998 issue of Aramco World treats the story of the road generally. More recent archaeobotanical research done by M. van der Veen at Leicester has shown how well-fed the workers (not slaves) were in these particular quarries. Not, then, the brutal ‘mines of Libya’ shown in the movie Spartacus. (For details about Roman quarry organization, see A.M. Hirt, Imperial Mines and Quarries in the Roman World [Oxford 2010].)


It is obvious from the porphyry sample that this is not the stone from the fireplace. Gebel Abu-Dukhan, in any case, has not seen any substantial modern production. It is also unlikely (at least so far, there’s no evidence) that the Chimtou quarries were exporting marble slabs before 1886 (and the red color of the fireplace is on the rare end of that quarry’s spectrum anyway).

That leaves the “Bréche Sanguine” from Kleber in Algeria as the strongest candidate in color, nature, and circumstance. But why would such an exotic and richly colorful marble be chosen for the Second Parlor in the Haas-Lilienthal House, while white marble (from the much more widely-known Carrara quarries) was reserved for the high-purpose Front Parlor?

On 25 July, 1902, a concern was brought by Manhattan-based C.D. Jackson & Co. to the U.S. Customs General Appraisers concerning a dispute about tariffs applied to imported stone. (Just three months earlier, the eponymous owner of the company had welcomed an infant son who happened to be at the helm of the company when later it collapsed in the 1929 stock-market crash, but who went on to be Special Assistant to President Eisenhower and then the Publisher of Life Magazine, in which capacity he purchased the Zapruder film of the John F. Kennedy assassination, but that’s clearly another story.)

Jackson & Co. were protesting a duty they had paid for ‘marble in block’, for imports they said were actually ‘breccia’, not ‘marble’. (In the tariff act of 1897, breccia had been listed as a duty-free import). In the rationale for upholding an exemption for breccia, three kinds of affected stone are given as examples, including ‘breche sanguine’. The argument over duties continued until 22 May, 1911, when the U.S. Court of Customs Appeals ruled that breccia and marble should in fact be subject to equal tariff. In that decision, mention is made of previous tariff acts that specified breccia as duty-free, including one in 1883. That same 1883 tariff act taxed block marble at 65 cents/cubic foot; ‘sawed’ or mosaic marble, such as that used in the fireplace slabs, was levied at $1.10/cubic foot.

While it might seem that sawn marble was subject to harsher tariff, American marble companies thought otherwise. They were struggling to compete with Italian producers of Carrara. In an appeal to the House Finance Committee on 29 Dec, 1888 (which showed the math), a group of domestic marble companies asked for cheaper rate (of 40 cents) on block marble that they could saw themselves, and then sell stateside at a competitive price. Their plea was ignored.

All this legal categorization shows that the red ‘breccia’ fireplace slabs were considered ‘cheaper’ material, and not ‘true’ marble. They had the look, but not the cost. For the aspirational upper-middle-class Haas family, Bréche Sanguine from Algeria was a sensible, even savvy, choice.

* * *

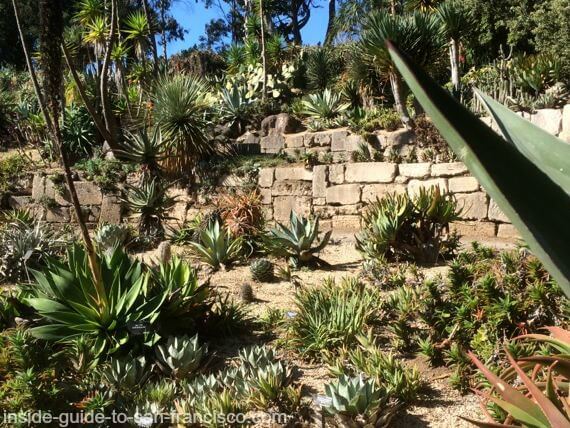

Limestone wall in the Succulent Garden at Strybing Arboretum, Golden Gate Park

The red fireplace turned out to be just one curious instance of stones brought from one Barbary coast to the other. The second turned up in the Botanical Garden of Golden Gate Park. Walking through the Succulent Garden near the southwest corner, we began to notice a number of carved stones built into the terracing and along the walkways: bits of architrave or lintels; dressed limestone blocks (see a panorama). Our first thought was that they might be spolia (recall the tetrarchal spolium above) from classicizing buildings destroyed by the Great Earthquake/Fire.

San Francisco, five weeks after the Great Earthquake/Fire

After all, architectural features from several buildings damaged by that disaster have survived or been reincorporated elsewhere in the city (SF Architectural Heritage News, Fall 2011; see pp. 12-13).

It turns out that the truth was much more interesting.

Cistercian stones at the Botanical Garden Library, from J. Leibman at SF City Guides

Arriving at the east end of the gardens in front of the Library (see map), we encountered a small plaque set in front of a wall and a much more extensive set of architectural fragments. The plaque explains that these stones, and others set in walls around the Fragrance Garden and elsewhere, belonged to a 12th-century Cistercian monastery, Santa María de Óvila, from Guadalajara in central Spain. Sections of this complex were purchased, dismantled, and shipped by the one-and-only William Randolph Hearst and moved at great expense in 1930-1 (necessitating new roadways, railway, and 11 cargo ships) to the Haslett warehouse on the San Francisco docks, where the crates stayed for a decade, building up storage fees as Hearst’s fortunes and plans wavered.

A bargain was struck between the City (who paid the storage fees) and Hearst (who gave over the stones), on the condition that they be used to construct museum buildings next to the de Young Museum in Golden Gate Park. But construction funding was not forthcoming, so the crates of stone languished, suffering from neglect and even several fires, as various factions argued over what to do (or not do) with them.

Firemen putting out the burning crates in 1941, soon after they had arrived in Golden Gate Park. From J. Leibman at SF City Guides.

Several worthy accounts of this monastery’s journey have been written, with full and fascinating detail:

  • Sacred Stones (visit the links in the ‘History’ tab), which documents the journey of the stones from Spain to San Francisco. It also describes their current reconstruction (the bulk of the collection, anyway) for the Chapter House of the Abbey of New Clairvaux in the Sacramento Valley. It includes the account of a young monk, Thomas X. Davis, who noticed the crated stone in Golden Gate Park on his way to New Clairvaux on Sept. 15, 1955, who could not get the stones out of his head, and who led the drive to have them reassembled at the Abbey.
  • Margaret Burke’s 1982 article about constructing plans and models to build with the stones once more.
  • A Wikipedia page for Santa María de Óvila, with extensive notes and illustrations.
  • Jack Leibman’s piece for San Francisco City Guides.

Chapter House at New Clairveaux, completed in 2012, using both medieval and modern stones to recreate the vaulting. From sacredstones.org

Suffice it to say that while some of the stones have been used for walls and terracing at the Arboretum, and some have been lost or destroyed, most have now been placed back into medieval shape in Vina, California. Some of the funding even came from another ancient technology: brewing. The abbey has a set of Trappist ales called ‘Ovila’.

Now did the original 12th-c. Cistercian monastery in Guadalajara incorporate stones from any classical sites, leading to actual Roman spolia brought to California? Alas, it does not seem so; none are quite close enough. Even the fantastic Visigothic city of Recópolis, some 60 km. away (and currently being excavated), was built from scratch.

Might as well keep looking, though, in order to feed the addiction of inquiry that emerges from spotting curious pieces of stone.


POSTSCRIPT, 14 January 2013.
I sent this story to the Haas-Lilienthal docents as an attempt to ‘ground-truth’ it. Here’s what’s new in their responses (received yesterday), with brief comments.

(from Carlo to Barbara): “Mr. Foss is quite right, the Red Numidian marble did not come from Egypt. I made some research a while ago and found out that it most likely came from the Kleber quarry in Algeria (in the province of Oran). I wrote a few lines about it in our discussion board:
I was curious about the origin of the Red Numidian marble which fronts the fireplace in the second parlor. The little information I found indicates that it was actually quarried in the province of Oran in Algeria. Oran is located near the western border of Algeria, while Numidia, an ancient Lybian kingdom and later Roman province, occupied the eastern border of Algeria and part of Tunisia. So was ‘Numidian’ just a nice sounding name to call this type of marble? As for the ‘marble of the Pharaohs’, it seems to refer to small objects found in Egypt. These objects were made from a stone of even red color, unlike Numidian marble which is veined.”

[comment: I'm happy to see confirmation that the marble came from Oran (and therefore Montagne Gris). A brief note on 'Numidian': unlike modern countries, ancient polities rarely had clearly delineated or stable borders that can be marked on a map. Numidia is best associated, however, with territory along the western coast of North Africa, including most of Algeria and the western part of Tunisia (no association with what we know as 'Libya', then or now). The 3rd and 2nd c. BC saw the height of Numidian power, sometimes independent, sometimes allied with or client to the Carthaginian or Roman states. It was in the 2nd c. BC, especially after the Third Punic War, that the Chimtou quarries were first developed on a significant scale; at that time they were definitely under Numidian control, hence the affiliation of 'Numidian' with the marble nomenclature by our Roman sources.]

(from Barbara): “It was a lavish item: A San Francisco Chronicle article from 1895 states that CP Huntington spent lavish amounts of money decorating his mansion in Midtown Manhattan and one of the new items installed would be ‘yellow Numidian marble artistically carved’ for his fireplace mantle. ‘On Decorative Art,’ San Francisco Chronicle, 01/13/1895.”

[comment: It is fascinating that, following bréche sanguine, giallo antico was also imported to the United States for luxury purposes in the late 19th c., confirming the fin de siècle Italian quarry operation at Chimtou, and (of course) that the fireplace was the showpiece for this once-again exotic material.]

Thanks to Barbara, Carlo, Genevieve, and all the others at the Haas-Lilienthal House and San Francisco Heritage for their devotion to investigating, preserving, and sharing our cultural patrimony.
